Understanding Company Workflow Options and Fields

Company Workflows have many different options and fields that allow you to determine how users will interact within form types.

Overview

When creating a new workflow, you are presented with many options which determine how users will interact with the workflow on forms. This section will provide detail on the importance of each field and how it affects your workflow.

Note: All fields of the "Workflow Details" area can be edited after saving. Therefore, if you make a mistake and need to update a field, you can do it.

Workflow Options and Fields

Workflow Name

This is the official name of your workflow. The workflow name will show in places where users see a list of workflows.

A good example Workflow Name is: "Electrical Submittal Review"

    Workflow Description

    This is a short description of your workflow which helps users understand when they should use your workflow. The Workflow Description will also show in places where users see a list of workflows.

    A good example of a Workflow Description is: "This workflow should be used when submitting an electrical submittal for approval. This workflow includes both internal and external users."

    Available For

    This is a list of document types, such as RFIs, Submittals, Folders, etc., where you want to make the workflow available to your users.  Workflows can only be created for one single form type.  Once a form type is selected, other form types can not be added.  In order to make a workflow for another form type, a new workflow must be created. If a document type is listed, then the workflow will be available. If a document type is not listed, then the workflow will not be available.

    Who Can Start

    This is the list of users who can start the workflow on the document types listed in the "Available For" field. You can choose from a list of share groups and users in this field.

    For example, you may say that "All users on project" should be able to start the workflow. In that case, any user on the project will be able to start the workflow on document types listed in the "Available For" field. If you don't want just any user to be able to start the workflow, select individual share groups and users to limit starter access.

    Who Can View

    This field determines who can view the workflow once it's been started on the document types listed in the "Available For" field. You have two options:

    • Only users that are involved in the workflow - This means the users who started the workflow and users in each step of the workflow (including the Send To and Also Copy fields) can view the workflow. No others users are able to see the workflow, even if they have access to the related document.
    • All users that have access to the document - This means that any user that has access to the document in which the workflow has been started can view the workflow, even if they are not directly involved in the workflow.

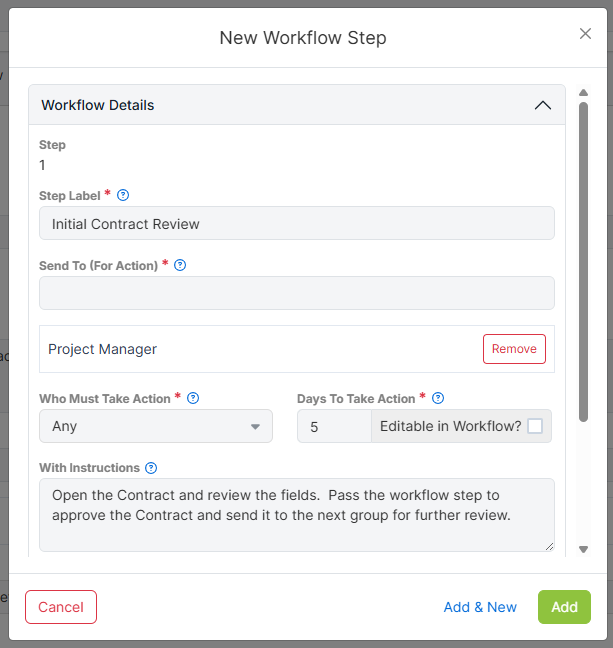

    Workflow Steps - Step Label

    This is the label of each step. The Step Label will be shown to users in the preview window before starting a workflow and in the workflow details area.

    Workflow Steps - Send To (For Action)

    This field indicates the users who are assigned the step in the workflow. These users will receive an email notification saying they have been assigned the workflow. You can add users, share groups, or even a dynamic user in this field.

    • Send To = User - The user will show in the workflow history as "Pending" until they take their action. After their action, the status will replace "Pending" with either "Passed", "Failed", or "Skipped" depending on the actions of the workflow.
    • Send To = Share Group - The Share Group will show in the workflow history as "Pending" until a user in the group takes action. After their action, the status will replace "Pending" with either "Passed", "Failed", or "Skipped" and the Share Group name will be replaced by the actual user that took action.
    • Send To = User who started the workflow - This is a dynamic option that is dependent on the individual user who started the workflow. For example, if Bob Jones started the workflow and "User who started the workflow" is added to step 3, then Bob Jones will show in step 3.

    Workflow Steps - Who Must Take Action

    This field gives you the option to decide who at each step, from the list defined in the Send To (For Action) field, is required to take their action before the workflow passes to the next step. You have two options:

    • Any - If the workflow Send To (For Action) field has 3 users in it, ANY of those users can take action to pass the workflow to the next step. Once one of the users takes their action, the action next to their name will show "Passed" while the status next to the other users' names will show "Skipped".
    • All - If the workflow Send To (For Action) field has 3 users in it, ALL of those users must take action to pass the workflow to the next step. If one user takes their action, the workflow will remain at that step until the other users take their action as well. There is no skipping in the "All" case.

    Workflow Steps - Days To Take Action

    This field indicates the number of days the users at the step have to take action. The number of days is based on "Working Days" which can be defined in the project calendar. For example, if you put a "1" in the field, and Saturday and Sunday are non-working days, then a workflow that gets assigned to a user on Friday will be due on Monday.

    Workflow Steps - With Instructions

    This field is where you can add instructions that will be sent to users once they are assigned the workflow, both in an email notification and shown in the workflow banner on documents.

    Workflow Steps - Also Copy (For Information)

    This field provides a way to auto-share the document on which the workflow has been started. Users and Share Groups added to this field will not receive email notifications. However, they will be able to view the workflow on the related document.

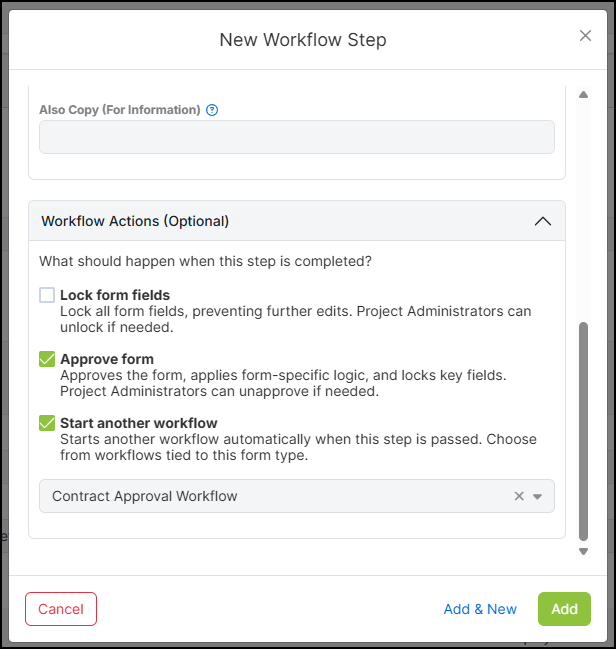

    Workflow Steps - Workflow Actions (Optional)

    This field allows you to create an action based on whether or not the workflow step has been passed.  There are three different actions that can be created.  Multiple actions can be selected per step, or indivudually depending on the step.  These action are listed and explained below:

    • Lock Form Fields - When the workflow step is passed, all field on the workflow will be locked.  This ensures that no one can edit any of the data on that form.  As a Project Administrator, you will have the ability to unlock the form fields, if edits are needed.

    • Approve Form - When the workflow step is passed, this will automatically approve the form.  For form types including Contracts, Potential Change Orders, Change Orders, Budget Items, and Payment Applications, this options will be available.  It will approve the form, and cause the financial information on that form to be locked.  As a Project Administrator, you have the ability to unapprove the form if edits are needed.
    • Start another workflow - When the workflow step is passed, this will automatically start another workflow for that form type.  These workflows will run simultaneously. If you have multiple workflow available for that form type, you will have the ability to select which workflow you want it to start.  If there are no other workflows available for that form type, than this will not appear as an option.
